Top Don
BT300P
Specification
- Working Voltage: @DC 9V-30V
- Display: 2.4" Color
- Cable Length: 31.5 inches
- Working Temperature: -10℃ to 55℃
- Storage Temperature: -20℃ to 75℃
- Dimension: 8.19*3.94*1.49 inches
- Weight: 16.76 oz.
- Protection: Reverse Polarity Protection
- CCA: 100-2000
- Battery Type: Flooded/AGM/GEL/EFB
- Battery Standard: CCA/CA/BCI/MCA/DIN/IEC/EN/SAE/JIS/G
Packing List
- BT300P
- User Manual
- Carrying Bag
- Printer Paper 3 Rolls
BT600 The Next Step For Battery Testing
-
Specification
- Working Voltage: DC 9V~30V
- Cable Length: 1.8m (70.9’’)
- Working Temperature: -10℃ to 55℃ （14°F to 131°F)
- Storage Temperature: -20℃ to 70℃ (-4°F to 158°F）
- Product Dimensions: 21.79×13.39×5.69cm (8.58×5.27×2.24’’)
- Weight: 550g (19.4 oz)
- Protection: Reverse Polarity Protection
Packing List
- BT600
- Battery Test Cable
- User Manual
- 3 Rolls of Printer Paper
- Mini USB Cable
- Carrying Bag
JumpSurge3000
-
Specification
- Peak Amps: 3000A
- Capacity (mAh): 24000mAh/ 88.8Wh
- Start-up Capacity​: 9L Gas​, 7L Diesel​
- Input​: Type C: PD45W, 5V/3A, 9V/3A, 12V/3A, 15V/3A
- Output--Bidirectional Type C: PD45W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
- Output--USB1: QC18W, 5V/3A, 9V/2A, 12V/1.5A
- Output--USB2: 5V/2A​
- Output--DC: 10A Max 16.8V
- Button on the Jump Starter: Power Button*1 BOOST*1
- Length of Clamp Cable: Positive--250mm; Negative--200mm
- Protections: Short Circuit Protection, Over Current Protection, Reverse Polarity Protection, Reverse Charge Protection, Over Temperature Protection, Over Discharge Protection
Packing List
- JumpSurge3000
- User Manual
- Ethylene Vinyl Acetate Carrying Bag
- Battery Clamps
- The adapter
- USB Cable
Packing List Tornado90000 User Manual Battery Clamp Allen Wrench
TB6000Pro Smart Charger & Tester
-
Specification
- Input Voltage: 100-240V
- Output Current: 1-6A
- Output Voltage: 6-16V
- Charging Mode: 12V/6A (NORM/LI/SUPPLY), 12V/3A SMALL, 12V/1A REPAIR, 6V/3A NORM
- Applicable Batteries: 5-240Ah
- AC Cable Length: 2m, Input AWG18#
- Charging Method: 9-Step Smart Charging
- DC Cable Length: Positive AWG14#, 1.8m; Negative AWG14#, 1.8m
- Applicable Battery Type: LI, WET, GEL, MF, CAL, EFB, AGM
- Protection Rating: IP65/COLD/BOOST/REPLY/AGM
- Applicable Batteries: 20-2800Ah
- AC Cable Length: 1.8m, Input AWG18#
- Clamp Length: Positive AWG4#, 2.2m; Negative AWG4#, 2.2m
- Protection Rating: IP20 Fan cooled
Packing List
- 1 x TB6000Pro
- 1 x Battery Clamps
- 1 x Ring terminals
- 1 x User Manual
Tornado120000
-
Specification
Electrical Specifications- Input Voltage: 90~240Vac
- Output Voltage: 11~16.8V 5-120A(adjustable), up to 1700W
- Charging Mode: Supply, Lead-Acid, LiFePO4, Custom, NORM, AGM
- Input: AWG18#, 2m
- Output: Positive AWG4#, 2.2m or 5m;Â Negative AWG4#, 2.2m or 5m
- Working Temperature: 14°F to 104°F (-10°C to 40°C)
- Storage Temperatue: -4°F to 167°F (-20°C to 75°C)
- Note: To switch the output line length, please change the settings in Output Line Settings.
- Protection: Over-temperature protection, input low voltage protection, overload protection, bad battery protection, short circuit protection, overvoltage protection, reverse connection protection, host abnormality protection.
Packing List
- Tornado120000
- 2m or 5m Battery Clamps
- USB-A to USB-B Cable
- AC Power Cable
- User Manual
- Safety Guide
Tornado30000 Power And Versatility
-
Specification
- Input Voltage: 100-240V
- Output Current: 12V30A; 24V15A; 6V15A; 12V10A
- Charging Mode: 12V30A(NORM/LI/REP); 24V15A(NORM/COLD/LI/REP); 6V15A(NORM/REPAIR); SUPPLY 12V30A/24V15A; 12V10A（NORM）
- Applicable Batteries: 50-1000Ah
- AC Cable Length: 2m, Input AWG18#
- Charging Clamp Length: Positive AWG10#, 2.2m; Negative AWG10#, 2.2m
- Working Temperature: -10℃~40℃ (14℉~104℉)
- Storage Temperature: -20℃～75℃ (-4℉~167℉)
- Protection Rating: IP20; Fan Cooled
- Dimensions: 335 x 160 x 78 mm (13.18 x 6.29 x 3.07")
- Net Weight: 2800g (6lb)
Packing List
- 1* Tornado30000
- 1* User Manual
- 1* Battery Clamps

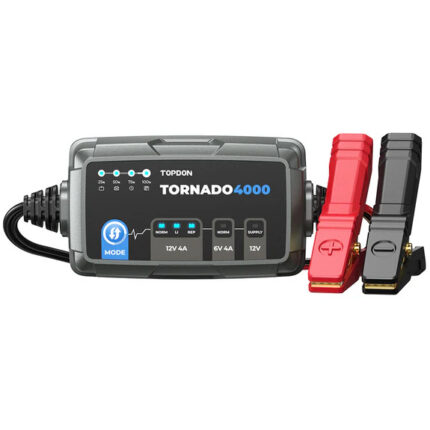

Tornado4000 2023 Version
 Specification
- Input Voltage: 100-240V
- Output Voltage: 6-14.4V
- Output Current: 4A Max
- Charging Mode: 12V NORM, 12V LI, 12V REP, 12V SUP & 6V NORM
- AC Cable Length: 2m, Input AWG18#
- Charging Method: 9-Step Smart Charging
- DC Cable Length: Positive AWG14#, 1.8m; Negative AWG14#, 1.8m
- Dimension: 13*7.9*5cm (5.12*3.11*1.97 inch)
- Weight: 600g (1.32 lb)
- Protection Rating: IP65
- Applicable Battery Capacities: 5-120Ah
Packing List
- Tornado4000 *1
- Package Box *1
- SAE to O-ring terminals *1
- Battery Clamps *1
- User Manual *1
Tornado90000 Your Battery’s Bodyguard
-
Specification
- Input Voltage: 100-130V or 200-240V
- Adjustable Voltage: 11-15.8V 22-31.6V
- Charging Mode: 12V/24V Mode: SUPPLY/NORM/COLD/BOOST/REPLY/AGM
- Applicable Batteries: 20-2800Ah
- AC Cable Length: 1.8m, Input AWG18#
- Clamp Length: Positive AWG4#, 2.2m; Negative AWG4#, 2.2m
- Protection Rating: IP20 Fan cooled
Packing List
- Tornado90000
- User Manual
- Battery Clamp
- Allen Wrench

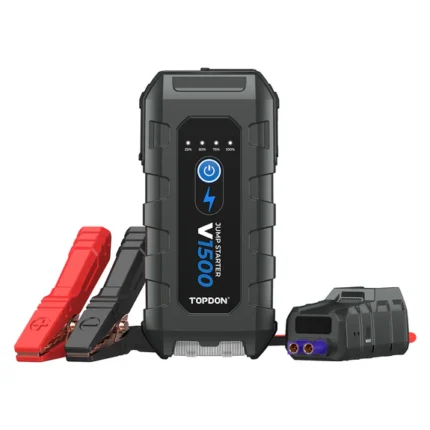

V1500
-
Specification
- Battery Capacity: 37Wh/10000mAh, 3.7V
- USB Type-A Output: 5V/3A
- DC Output: Max 16.8V 10A
- USB Type-C Input: PD18W 5V/3A, 9V/2A
- Peak Current: 1500A
- Dimensions: 196*125*92mm (7.72 x 4.92 x 3.62 inches)
- Weight: 950g (33.5 oz)
- Cable Length: Positive: AWG8#, 250 mm; Negative: AWG8#, 150 mm
- Working Temperature: -10℃ to 40℃ (14 ℉ to 104 ℉ )
- Storage Temperature: -20℃ to 75℃ (-4 ℉ to 167 ℉ )
- Protections: Reverse connection, reverse charging, short circuits, over current, over temperature, over discharge
Packing List
- V1500 Jump Starter
- Battery Clamps
- USB Cable
- User Manual
- Carrying Case
- Package Box

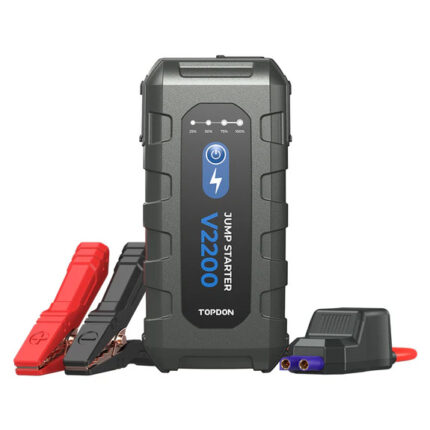

V2200
-
Specification
- Battery Capacity: 59.2Wh/16000mAh, 3.7V
- USB1 Output: QC18W 12V/1.5A, 9V/2A, 5V/3A
- USB2 Output: QC18W 12V/1.5A, 9V/2A, 5V/3A
- DC Output: Max 16.8V 10A
- Type-C Input/Output: PD60W 20V/3A, 15V/3A, 12V/3A, 9V/3A, 5V/3A
- Peak Current: 2200A
- Dimensions: 267x157x106mm (10.5x6.2x4.2 inches)
- Weight: 1460g (51.5oz)
- Cable Length: Positive: AWG8#，200mm; Negative: AWG8#，150mm
- Working Temperature: -10℃ to 40℃ (14 ℉ to 104 ℉ )
- Storage Temperature: -20℃ to 75℃ (-4 ℉ to 167 ℉ )
- Protections: Reverse connection, reverse charging, short circuits, over current, over temperature, over discharge
Packing List
- V2200 Jump Starter
- Battery Clamps
- USB Cable
- User Manual
- Quick Start Guide
- Carry Case
- Package Box

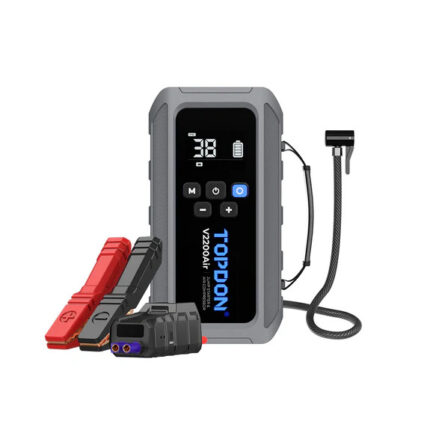

V2200Air
-
Specification
- Peak Current: 2200A
- Battery Capacity: 3.7V, 12000mAh, 44.4Wh
- Type-C Input: PD45W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A
- Type-C Output: PD45W, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A
- USBA Output: 5V⎓3A
- DC Output: Max 16.8V⎓10A
- Dimensions: 265*139*70mm ( 10.4*5.5*2.8 inches)
- Weight: 1400g (3.08lb)
- Cable Length: Positive: 250mm Negative: 150mm
- Working Temperature: -10℃~55℃ (14℉~131℉)
- Storage Temperature: -20℃~55℃ (-4℉~131℉)
- Safety: Protections: Short Circuit Protection, Over Current Protection, Reverse Polarity Protection, Reverse Charge Protection, Over Temperature Protection, Over Discharge Protection
