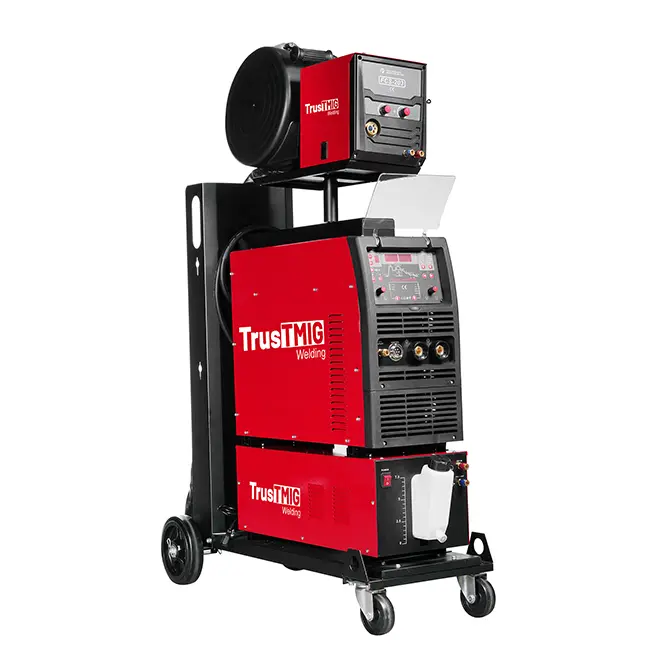

400V Double Pulse MIG DC MMA PULSEMIG500D
This inverter welder features digital DC MMA and double‑pulse MIG control, IGBT soft‑switch technology, synergic MIG/pulse MIG modes, over‑current and over‑temperature protection, a trolley design, 2T/4T torch control, dual adjustment knobs, a 4‑roll wire feeder, and compatibility with CO₂, mixed, and argon gases.
Voltage
400V
Current
20-500A
Base Material
Carbon Steel, Stainless Steel, aluminum
- Digital Control DC MMA and Double-Pulse Mig
- IGBT inverter soft switch
- Synergice mig /pulse mig
- Over current and over hot protection
- Special design trolley
- 2T/4T function
Description
Overview
Double-Pulse Mig DC MAA
- 1. Digital Control DC MMA and Double-Pulse Mig
- 2. IGBT inverter soft switch
- 3. Synergice mig /pulse mig
- 4. Over current and over hot protection
- 5. Special design trolley
- 6. 2T/4T function
- 7. Two knobs adjusting
8. 4Rollers wire feeder
9. Material chosen
10. Co2 ,Mix and Argon gas
Accessories
- 01. MIG torch 3m
- 02. Earth clamp cable 2m with 500A earth clamp
- 03. Gas Hose 2m
- 04. Welding cable with500A electrode holder
- 05. Gas Hose 2m
Optional Accessories
- 01.Regulator
- 02. Water cooler
Application
Suitable Material
Carbon Steel, Stainless Steel, aluminum
Thickness Of The Material
Carbon Steel, Stainless Steel, aluminum: Over 0.5mm
Suitable Position
All Positions
Suitable Wire
1.0,1.2,1.6 Solid Wire & Flux Cored Wire. 1.3 Characteristic Of PULSEMIG500D
MAINPARAMETERS
| MODEL | PULSEMIG350D | PULSEMIG500D |
|---|---|---|
| Power Supply Voltage | 3*400V | 3*400V |
| Rate Input Capacilty (KVA) | 18 | 27 |
| Rate Input Current(A) | 26 | 39 |
| No Load Voltage | 70 | 79 |
| Output Current Range |
MIG:20-350A
MMA:10-350A
|
MIG:20-500A
MMA:10-400A
|
| Duty Cycl | 60% | 60% |
| L*W*H(M M) | 670*290*560 | 670*290*560 |
| Weight | 48KG | 52KG |
